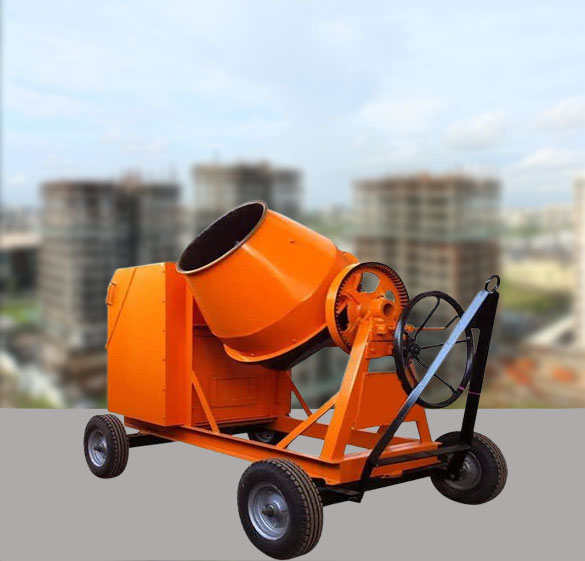

Concrete Mixer - 3/4 Bag
Concrete Mixture
Concrete Mixture
Specification
| Title | Description |
|---|---|
| Batch Capacity | 7 cft unmixed / 5 cft mixed. |
| Power Requirement | (A) 5 H.P. Air-cooled Diesel Engine (B) 3 H.P.3 Phase Electric Motor |
| Mixing Drum | Heavy duty Drum with bearing & Bush. M. S. Blade for efficient Mixing. |
| Mixed Drum | Pneumatic Tyre with Roller Bearing with excel shaft. |

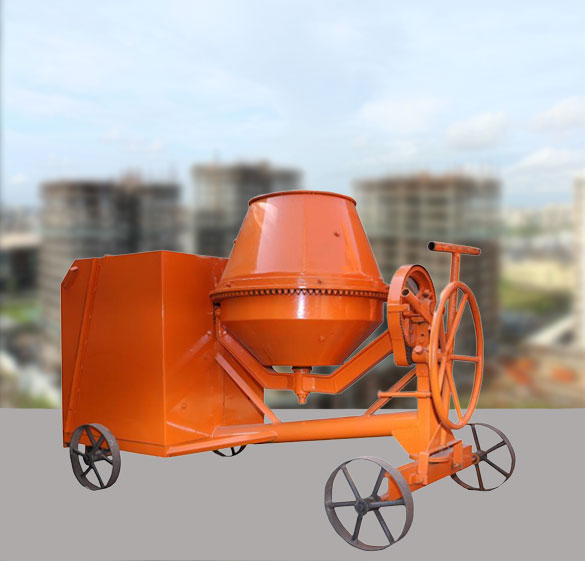

Concrete Mixer - 1/2 Bag
Specification
| Customer Say | Details |
|---|---|
| Batch Capacity | 5 cft unmixed / 3 cft mixd |
| Power Requirement | (A) 2 H.P. 1 Ph. Electric Motor (B) 5 H.P. Diesel Engine Air Cooled |
| Transmission | Through ' V ' groove pulley. |
| Handling | M.S. Fabricated Wheels. |
Specification
| Customer Say | Details |
|---|---|
| Capacity | 2 hoppers of 1 bag capacity each-to-sand & receive metal. |
| Chasis | Heavy Duty robust made out of heavy section. |
| Transmission | By mechanical joints provided with dust covered bearings. |
| Lever Type System | Pan weight of 50 & 100 kg and jockey wei ghtto adjust the weight from 0 to 50 kg's |
| Handling | M.S. Fabricated Wheels. |

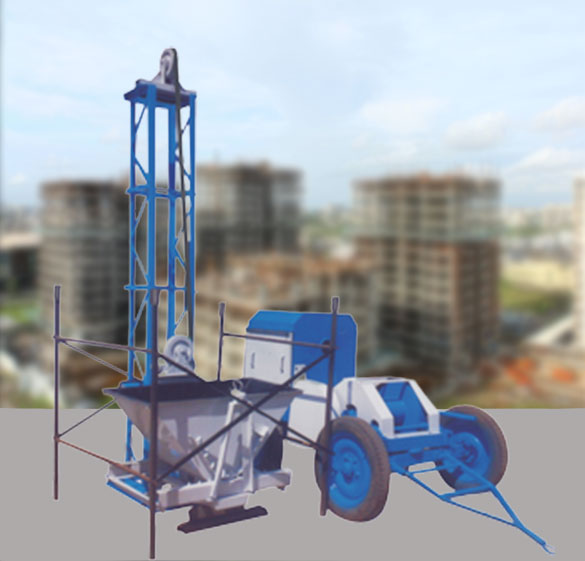

Concrete Batching Machine
Hand Fed Mobile Mixer
Specification
| Customer Say | Details |
|---|---|
| Batch Capacity | 5 cft unmixed / 3 cft mixed |
| Chasis | Heavy Duty robust made out of heavy section |
| Power | Heavy Duty robust made out of heavy steel section. |
| Advantages | Compact Size & Easy to shift whenever you want. Any unskilled labour can operate. Totally manually operated. Parts easily detechable. |
