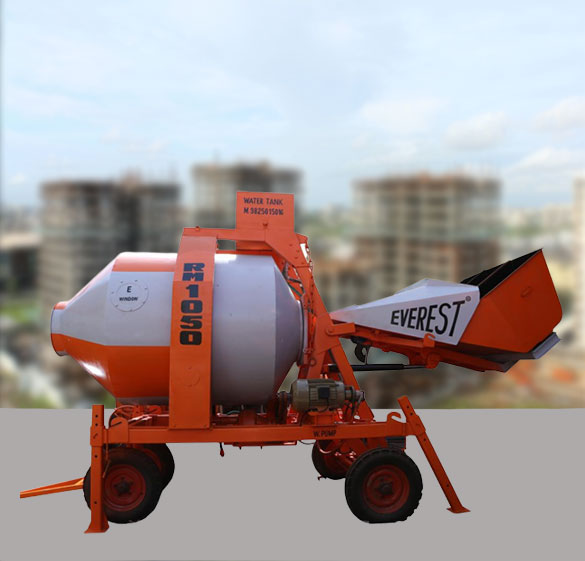

"RM 1050" Make Mini Mobile concrete Mixing
Concrete Mixture
Concrete Mixture
Specification
| Title | Description |
|---|---|
| Batch Capacity | 8-10 M³/hr. |
| Power Requirement | 12.5 HP Electric Motor ( ISO Make) |
| Three Bin Component | Digital weighing system (Base on Load cell Principle) |
| Mixed Drum | Reversible drum concrete mixer types in M.S. sheet with Forward rotation mixing of concrete & reverse rotation discharge of concrete. |
| Loading Hopper | Hydraulic Operated with Heavy Duty Power pack. |
| Wheels | Tractor Front Wheel with heavy duty hub assembly. (6.00X16) |
| Gear Ring | Single Piece forged steel for extra long life ( Hob Cut) |

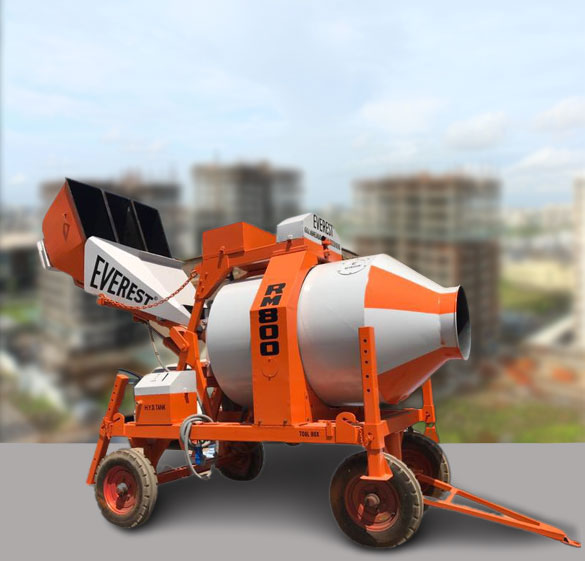

"RM 800" Make Mini Mobile concrete Mixing
Specification
| Title | Description |
|---|---|
| Batch Capacity | 8-10 M³/hr. |
| Power Requirement | 12.5 HP Electric Motor ( ISO Make) |
| Three Bin Component | Digital weighing system (Base on Load cell Principle) |
| Mixed Drum | Reversible drum concrete mixer types in M.S. sheet with Forward rotation mixing of concrete & reverse rotation discharge of concrete. |
| Loading Hopper | Hydraulic Operated with Heavy Duty Power pack. |
| Wheels | Tractor Front Wheel with heavy duty hub assembly. (6.00X16) |
| Gear Ring | Single Piece forged steel for extra long life ( Hob Cut) |
Specification
| Title | Description |
|---|---|
| Batch Capacity | 10 cft unmixed / 7 cft mixd. |
| Power Requirement | (A) 7.5 H.P. Air-Cooled Diesel Engine. |
| Chassis | The Sturdy chassis is robustly fabricated from heavy steel section, which is fitted with four pneumatic wheels. |
| Mixed Drum | Heavy duty Drum with bearing & Bush. M. S. Blade for efficient Mixing |

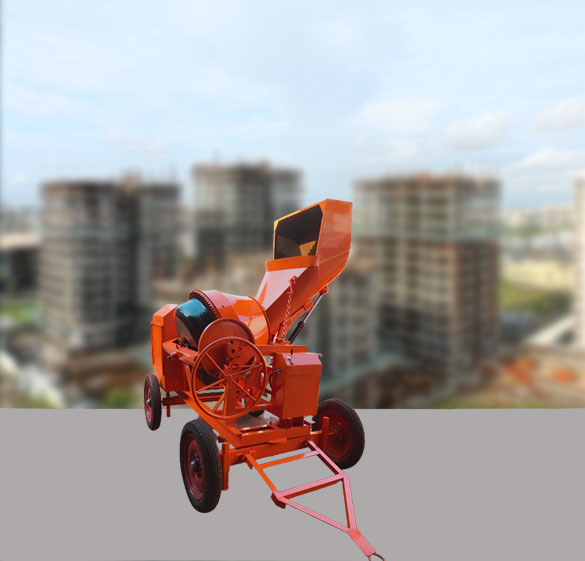

Concrete Mixer - Hydraulic 10/7 CFT
Concrete Mixer - Mechanical 10/7 CFT
Specification
| Title | Description |
|---|---|
| Batch Capacity | 10 cft unmixed / 7 cft mixd. |
| Power Requirement | (A) 6.5 H.P. Air-cooled Diesel Engine (B) 7.5 H.P.3 Ph . Elctric Moto |
| Chassis | The Sturdy Chassis is robustly fabricated from heavy steel section, which is fitted with four pneumatic wheels. |
| Mixed Drum | Heavy duty Drum with bearing & Bush. M. S. Blade for efficient Mixing. |
Specification
| Title | Description |
|---|---|
| Batch Capacity | 10 cft unmixed / 7 cft mixd. |
| Power Requirement | (A) 5 H.P. Air-cooled Diesel Engin (B) 5 H.P.3 Ph . Elctric Motor |
| Chassis | The Sturdy Chassis is robustly fabricated from heavy steel section, which is fitted with four pneumatic wheels. |
| Mixed Drum | Heavy duty Drum with bearing & Bush. M. S. Blade for efficient Mixing. |

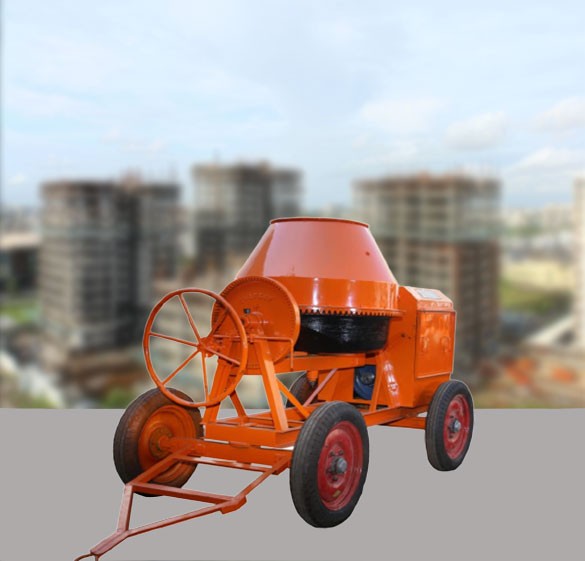

Concrete Mixer Without Hopper 10/7 CFT
